Super Duplex Steel
Super Duplex 2507 is a duplex stainless steel designed for applications which demand exceptional strength and corrosion resistance. Alloy 2507 has 25% chromium, 4% molybdenum, and 7% nickel. This high molybdenum, chromium and nitrogen content results in excellent resistance to chloride pitting and crevice corrosion attack and the duplex structure provides 2507 with exceptional resistance to chloride stress corrosion cracking.
Usage of Super Duplex Steel 2507 should be limited to applications below 600° F (316° C). Extended elevated temperature exposure can reduce both the toughness and corrosion resistance of alloy 2507.
Super Duplex 2507 possesses excellent mechanical properties. Often a light gauge of 2507 material can be used to achieve the same design strength of a thicker nickel alloy. The resulting savings in weight can dramatically reduce the overall cost of fabrication.
2507 Super Duplex Steel is highly resistant to uniform corrosion by organic acids such as formic and acetic acid. It is alsohighly resistant to inorganic acids, especially if they contain chlorides. Alloy 2507 is highly resistant to carbide-related intergranular corrosion. Due to the ferritic portion of the Super duplex structure of the alloy it is very resistant to stress corrosion cracking in warm chloride containing environments. Through additions of chromium, molybdenum and nitrogen localized corrosion such as pitting and crevice attack are improved. Alloy 2507 has excellent localized pitting resistance
Specification
Super Duplex Steel Angles
Grades :
S32750 (2507) / S32760
Standard :
ASTM A276/ASME SA276 EN, BS, GB, DIN, JIS, etc
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Super Duplex Steel Sheets
Grades :
S32750 (2507) / S32760
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, embossed, hairline, sand blast, Brush, etching, Hot rolled Sheets (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet
Super Duplex Steel Plates
Grades :
S32750 (2507) / S32760
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, hairline, sand blast, Brush, etching, Hot rolled Plate (HR), Cold rolled Plates (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate

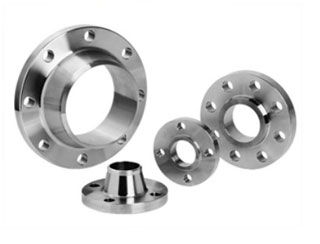

Super Duplex Steel Flanges
Grades :
S32750 (2507) / S32760
Specifications :
ASTM A182 / ASME SA182.
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange
Super Duplex Steel Flat Bars
Grades :
S32750 (2507) / S32760
Standard :
ASTM A276/ASME SA276
Size Range :
3.17mm to 350mm dia
Length(mm)
2 meters - 7 meters ( 8 feet to 24 feet)
Thickness
2mm~100mm
Types
Duplex Flat Bars, Super Duplex Steel Flat Bars
Super Duplex Steel Pipe Fittings
Grades :
S32750 (2507) / S32760
Standard :
ASTM A815 / ASME SA815
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

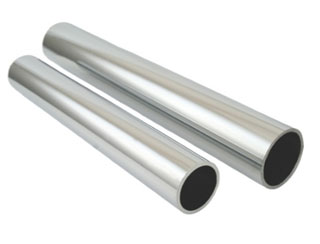

Super Duplex Steel Pipes
Grades :
S32750 (2507) / S32760
Standard :
ASTM A790, A358 / ASME SA790, SA358
Seamless Size :
1/2″ NB – 16″ NB
ERW Size :
1/2″ NB – 24″ NB
EFW Size :
6″ NB – 100″ NB
Outside Diameter :
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW, EFW
Form :
Round Pipes, Square Pipes, Rectangular Pipe
End :
Plain End, Beveled End, Treaded
Super Duplex Steel Channels
Grades :
S32750 (2507) / S32760
Standard :
ASTM A276/ASME SA276
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Super Duplex Steel Round Bars
Grades :
S32750 (2507) / S32760
Standard :
ASTM A276/ASME SA276
Size Range :
(Ro)Dia 6 - 350mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Super Duplex Steel T Beams
Grades :
S32750 (2507) / S32760
Standard :
ASTM A276/ASME SA276
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
