Alloy Steel

Chromoly is an abbreviation for "chromium-molybdenum steel". Alloy steels are broken down into two groups: low alloy steels and high alloy steels.

These steels have greater strength, hardness, hot hardness, wear resistance, hardenability, or toughness compared to carbon steel. However, they may require heat treatment to achieve such properties. Common alloying elements are molybdenum, manganese, nickel, chromium, vanadium, silicon and boron.


Available forms are Alloy Steel Pipes & Tubes, Alloy Steel Round Bars, Alloy Steel Sheets & Plates, Alloy Steel Pipe Fittings, Alloy Steel Forged Fittings, Alloy Steel Fasteners, Alloy Steel Valves, Alloy Steel Flanges

Specification

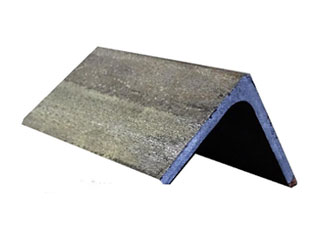

Alloy Steel Angles

Grades :

F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Standard :

ASTM A350 / ASME SA350 EN, BS, GB, DIN, JIS, etc

Size Range :

25mm x 25mm (1” equal angle) to 100mm x 100mm (4” equal angle) in thickness range of 2mm to 12mm

Length(mm)

Upto 6 Meters

Thickness

3mm to 20 mm

Types

Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

Alloy Steel Sheets

Grades :

Gr.5, Gr.9, Gr.11, Gr.12, Gr.22, EN19 / 4140, EN24 / 4340

Standard :

ASTM A387 / ASME SA387

Thickness :

5mm-150mm

Width :

1000mm-4500mm

Length :

3000mm-18000mm

Form :

Plain Sheet, Shim Sheet, Perforated Sheet

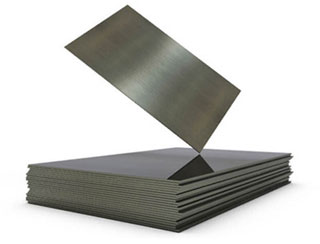

Alloy Steel Plates

Grades :

Gr.5, Gr.9, Gr.11, Gr.12, Gr.22, EN19 / 4140, EN24 / 4340

Standard :

ASTM A387 / ASME SA387

Thickness :

5mm-150mm

Width :

1000mm-4500mm

Length :

3000mm-18000mm

Form :

Pressure Vessel Plate, Steel Boiler plate, Chequered Plate

Alloy Steel Flanges

Grades :

F1, F5, F9, F12, F91,

Standard :

ASTM A182 / ASME SA182, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Dimensions :

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Size :

1/2" (15 NB) to 48" (1200NB)

Class/Pressure :

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type :

Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form :

Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

Alloy Steel Flat Bars

Grades :

F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Standard :

ASTM A350 / ASME SA350

Size Range :

3.17mm to 350mm dia

Length(mm)

2 meters - 7 meters ( 8 feet to 24 feet)

Thickness

2mm~100mm

Types

CRMO Flat Bars, Chrome Moly Flat Bars

Alloy Steel Pipe Fittings

Grades :

WP5, WP9, WP11, WP22, WP91

Standard :

ASTM A234 / ASME SA234

Dimensions :

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size :

1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type :

Seamless / Welded / Fabricated

Bending Radius :

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Schedule :

Sch 5 TO Sch XXS.

Thickness :

Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Alloy Steel Pipes

Grades :

P5, P9, P11, P12, P22, P91

Standard :

ASTM A335, A691 / ASME SA335, SA691

Pipe Size :

1/8"NB TO 30"NB IN

Outside Diameter :

6-2500mm; WT:1-200mm

Schedule :

SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, XXS

Type :

Seamless / EFW

Length :

Single Random, Double Random & Cut Length

End :

Plain End, Beveled End, Treaded

Alloy Steel Channels

Grades :

F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Standard :

ASTM A350 / ASME SA350

Standard :

EN, DIN, JIS, BS, AISI

Size Range

40mm*20mm~300mm*300mm

Thickness

3.0mm – 120mm

Length

3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes

Types

Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel

Alloy Steel Round Bars

Grades :

F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Standard :

ASTM A350 / ASME SA350

Size Range :

(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm

Thickness

5 mm To 500 mm thick in 100 mm TO 6000 mm.

Types

Round, Square, Recatangle, Hexagonal, Round Threaded

Alloy Steel T Beams

Grades :

F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Standard :

ASTM A350 / ASME SA350

Standard :

EN, DIN, JIS, BS, AISI

Size Range

3″ thru 12.31″

Thickness

3.0mm – 120mm

Length

3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes

Types

T Beams, Hot Rolled T Beams
