Titanium
Since the introduction of titanium and titanium alloys in the early 1950s, these materials have in a relatively short time become backbone materials for the aerospace, energy, and chemical industries. The combination of high strength-to-weight ratio, excellent mechanical properties, and corrosion resistance makes titanium the best material choice for many critical applications. Today, titanium alloys are used for demanding applications such as static and rotating gas turbine engine components. Some of the most critical and highly-stressed civilian and military airframe parts are made of these alloys.
The use of titanium has expanded in recent years to include applications in nuclear power plants, food processing plants, oil refinery heat exchangers, marine components and medical protheses. The high cost of titanium alloy components may limit their use to applications for which lower-cost alloys, such as aluminium and stainless steels. The relatively high cost is often the result of the intristic raw material cost of metal, fabricating costs and the metal removal costs incurred in obtaining the desired final shape.
Pure titanium wrought products, which have minimum titanium contents ranging from about 98,635 to 99,5 wt%, are used primarily for corrosion resistance. Titanium products are also useful for fabrication but have relatively low strength in service.
Titanium has the following advantages:
♦ Resistance to erosion and erosion-corrosion
♦ Very thin, conductive oxide surface film
♦ Hard, smooth surface that limits adhesion of foreign materials
♦ Surface promotes dropwise condensation
Applications
Ti6Al4V is typically used for:
♦ Direct Manufacturing of parts and prototypes for racing
and aerospace industry
♦ Biomechanical applications, such as implants and prosthesis
♦ Marine applications
♦ Chemical industry
♦ Gas turbines
Titanium Availability Alloy Steel Age supplies Titanium Alloy in the form of Angle, Sheets, Plates, Flanges, Flat Bars, Pipe Fittings, Pipes, Chnnels and flanges.
Specification

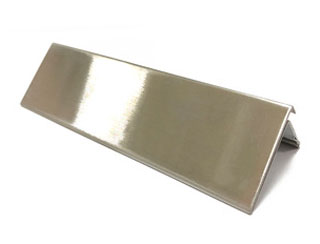

Titanium Angles
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B348 / ASME B348
Size Range :
Width: (Coil) 900 - 3000 mm /(Strip) Min-15mm
Length(mm)
Max 6000
Thickness
3-10
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

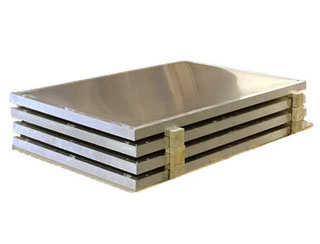

Titanium Sheets
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
: ASTM B265 / ASME SB265, AMS 4902
Dimensions :
ASTM, ASME, and API
Sheet Size Range :
0.012" - 0.125"
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet

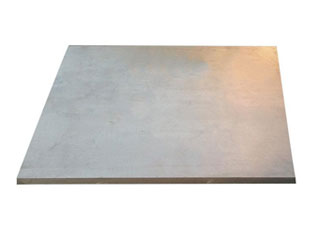

Titanium Plates
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
: ASTM B265 / ASME SB265, AMS 4902
Dimensions :
ASTM, ASME, and API
Plates Size Range :
0.187" - 2.000"
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Pressure Vessel Plate, Steel Boiler plate, Chequered Plate

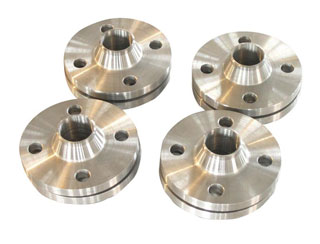

Titanium Flanges
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B381 / ASME SB381
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

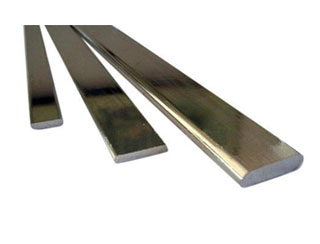

Titanium Flat Bars
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B348 / ASTM SB348
Size Range :
Width: 3.17mm to 350mm dia
Length(mm)
2 meters - 7 meters ( 8 feet to 24 feet)
Thickness
2mm~100mm
Width
25-100
Types
Titanium Flat Bars, Titanium Alloy Flat Bars

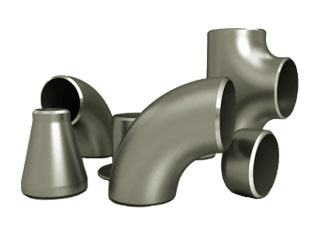

Titanium Pipe Fittings
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B363 / ASME SB363
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
1/2" to 24" NB to 24″NB in
Type :
Seamless / Welded / Fabricated
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Schedule :
Sch 5 TO Sch XXS.
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

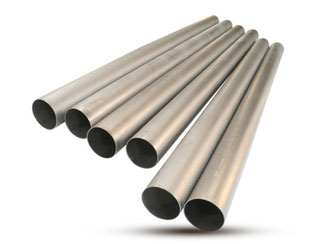

Titanium Pipes
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B861, B862 / ASME SB861, SB862
Pipe Size :
15"NB – 150"NB
Outside Diameter :
1.250″ – 6.000″ (30-150mm)
Wall Range :
0.095″ – 1.000″ (.2.5-25mm)
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded

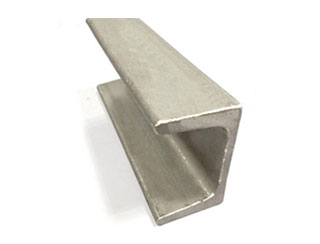

Titanium Channels
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B348 / ASME B348
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channels
Titanium Round Bars
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B348 / ASME B348
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Titanium T Beams
Grades :
Titanium Gr.1, Titanium Gr.2, Titanium Gr.4, Titanium Gr.5, Titanium Gr.7
Standard :
ASTM B348 / ASME B348
Size Range :
3″thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous T Beams, Hot Rolled T Beams
