Outlet Fittings

What are branch connections (or pipe branch outlet fittings aka “Olets”)? Olet fittings are a family of forged products used to make 45 or 90 degrees integrally reinforced branch connections (deviations) from a run pipe (also called, header pipe) to a branch pipe (outlet pipe). The common types of branch fittings are Weldolet, Thredolet, Sockolet, Latrolet, Elbolet, Nipolet, Sweepolet. MSS-SP 97 is the key specification covering reinforced branch connections, introduced by Bonney Forge in the piping market more than 70 years ago.


Pipe branch fittings are used to create integrally reinforced connections from a run pipe (header pipe) to an outlet pipe, at 45 or 90 degrees, alternative to connections made with butt weld tees, reinforcing pads and saddles. This type of forged fittings is otherwise called “branch connections”, or “branch fittings”, or “pipe branch outlet fittings” or, simply, “Olets”.

Specification

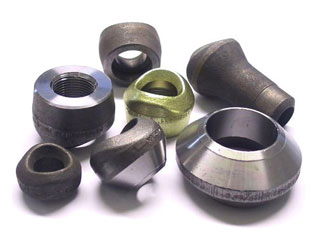

Stainless Steel Outlet Fittings

Grades :

304, 304L, 304H, 308, 309, 309S, 310S, 310H, 312, 314, 316, 316L 316H, 316Ti, 317L, 321, 347, 347H,904L

Standard :

ASTM A182 & ASME SA182

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

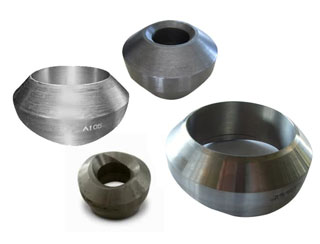

Carbon Steel Outlet Fittings

Grades :

LF1, LF2, LF3

Standard :

ASTM / ASME A 105, ASTM / ASME A 350 LF 2.

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

Alloy Steel Outlet Fittings

Grades :

F5, F9, F11, F22, F91

Standard :

ASTM A182 & ASME SA182

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

Duplex and Super Duplex Steel Outlet Fittings

Grades :

S31803 / S32205 (2205) / S32750 (2507) / S32760

Standard :

ASTM A182 & ASME SA182

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

High Nickel Alloys Outlet Fittings

Grades :

Nickel Alloy 200, 201 / Monel 400, K500 / Inconel 600, 601, 625, 718 / Incoloy 800/800H/800HT, 825, 925 / Hastelloy C22, C-2000 C276, B2, B3

Standard :

ASTM B366 & ASME SB366

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

Alloy A286 Outlet Fittings

Grade

Alloy A286 UNS S66286

Standard :

ASTM A182 & ASME SA182

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

SMO 254 Outlet Fittings

Grade

SMO 254 | UNS S31254

Standard :

ASTM B366 & ASME SB366

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged

Alloy 20 Outlet Fittings

Grade

Alloy 20 UNS N08024

Standard :

ASTM B366 & ASME SB366

Dimensions :

ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc

Size :

1/8"-4" (DN6-DN100)

Connect Type :

Welded, threaded, BW, SW

Process :

Free forging, plate cutting .forged
