Alloy 20
Alloy Steel Age now includes Alloy 20 (UNS N08020) in sheet, sheet coil, plate, round bar, processed flat bar and tubular products. Alloy 20 (UNS N08020) is an austenitic, nickel-iron-chromium based super alloy with additions of Copper and Molybdenum which provide resistance to hostile environments, pitting, and crevice corrosion. It is also stabilized with Columbium to minimize carbide precipitation during welding. Alloy 20 appears to fall between both the stainless and nickel categories as it contains characteristics of both.
It was designed for maximum resistance to acid attack and demonstrates superior resistance to stress-corrosion cracking in boiling 20% to 40% sulfuric acid, and also has excellent general corrosion resistance to sulfuric acid and to chloride stress corrosion cracking. Alloy 20 has good mechanical properties at both ambient and elevated temperatures, up to approximately
930°F (500°C) and is readily fabricated by usual industrial processes.
Specifications: UNS N08020
Applications:
Alloy 20 was originally designed for use in sulfuric acid related applications; however, it is now frequently used in a wide variety of industries. Applications that commonly use Alloy 20 include:
♦ Chemical and allied industries
♦ Food and dye production
♦ Heat exchangers
♦ Explosives
♦ Tanks
♦ Valves
♦ Pickling racks
♦ Manufacture of synthetic rubber and plastics
♦ Pharmaceuticals
♦ SO2 scrubbers and other severe environments
Standards:
ASTM/ASME: UNS N08020
EURONORM: FeMi35Cr20Cu4Mo2
DIN: 2.4660
Alloy 20 Availability Alloy Steel Age supplies Alloy 20 in the form of Angle, Sheets, Plates, Flanges, Flat Bars, Pipe Fittings, Pipes, Chnnels and flanges.
Specification

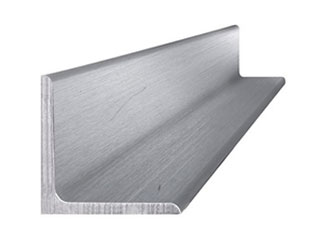

Alloy 20 Angles
Grade
Alloy 20 UNS N08024
Standard :
ASTM B473 / ASME B473
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

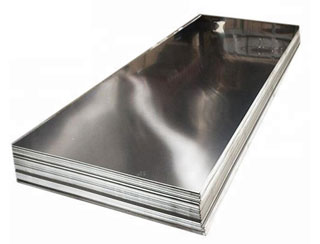

Alloy 20 Sheets
Grade
Alloy 20 UNS N08024
Standard :
ASTM B463 / ASME SB463, AMS 4544
Dimensions :
ASTM, ASME, and API
Alloy 20 Sheets
thickness range from .008" to .0125"
Size
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Plain Sheet, Shim Sheet, Perforated Sheet

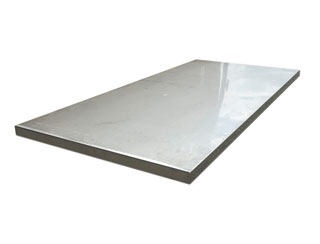

Alloy 20 Plates
Grade
Alloy 20 UNS N08024
Standard :
ASTM B463 / ASME SB463, AMS 4544
Dimensions :
ASTM, ASME, and API
Alloy 20 Plates
thickness ranges from .0125" to 5.00"
Size
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Chequered Plate

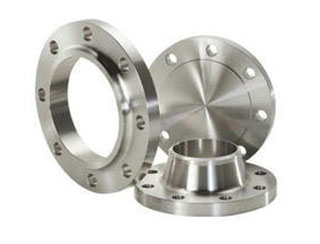

Alloy 20 Flanges
Grades :
Alloy 20 UNS N08024
Standard :
ASTM B462 / ASME SB462
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Type :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.

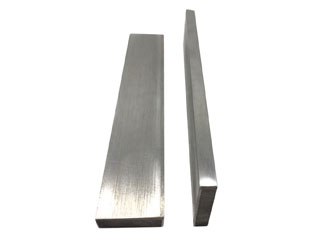

Alloy 20 Flat Bars
Grades :
Alloy 20 UNS N08024
Standard :
ASTM B473 / ASME B473
Size Range :
3.17 mm to 350 mm diameter
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
2mm~100mm
types
Alloy 20 CB 3 Flat Bars, Carpenter 20 Flat Bars, Incoloy 20 Flat Bars

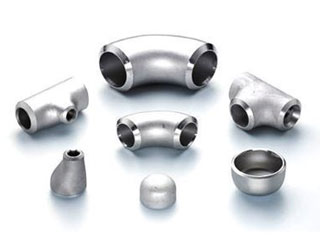

Alloy 20 Pipe Fittings
Grade
Alloy 20 UNS N08024
Standard :
ASTM A403 / ASME SA403
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
1/2" to 24" NB to 24″NB in
Type :
Seamless / Welded / Fabricated
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Alloy 20 Pipes
Grade
Alloy 20 UNS N08024
Standard :
ASTM B729, B464 / ASME SB729, SB464
Standard :
ASTM, ASME, and API
Seamless Pipe Size
1 / 8" NB - 24" NB
Alloy 20 Plates
1 / 8" NB - 36" NB
ERW Pipe Size
1 / 8" NB - 36" NB
EFW Pipe Size :
6" NB - 100" NB
Length :
Single Random, Double Random & Required Length
Outer Diameter:
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness :
0.3mm – 50 mm
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded

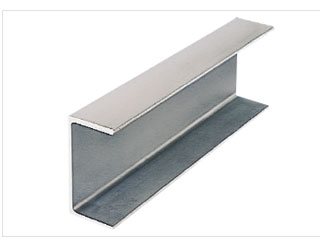

Alloy 20 Channels
Grade
Alloy 20 UNS N08024
Standard :
ASTM B473 / ASME B473
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Alloy 20 Round Bars
Grade
Alloy 20 UNS N08024
Standard :
ASTM B473 / ASME B473
Size Range :
15NB to 150NB In
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Length
4 mm To 350 mm DIA
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Alloy 20 T Beams
Grade
Alloy 20 UNS N08024
Standard :
ASTM B473 / ASME B473
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
