Cladded Plates

Clad steel plate is a composite steel plate made by bonding stainless steel plate, etc. (cladding material) to either or both sides of a carbon steel or low alloy steel plate (base metal). Therefore, clad steel plate has not only sufficient strength required of structural materials (base metal) but other functions including resistance to heat and corrosion (cladding material) and is lower in cost than similar products made entirely of the cladding material. Consequently, clad steel plate is used in a variety of industrial fields including shipbuilding, construction and manufacturing of various tanks.


Alloy Steel Age started commercial production of clothes, steel plate, by combining its production know-how for high-grade steel plates used in the past with the very latest achievements in research and development. Although the manufacturing method of clothing steel plate comes in a variety of versions, Alloy Steel Age has been producing “rolled clad steel”.

Specification

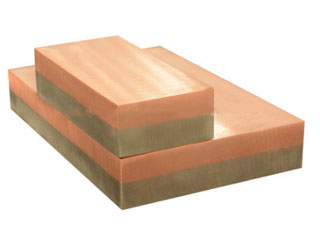

Stainless Steel Cladded Plates

Grades :

304, 304L, 304H, 308, 309, 309S, 310S, 310H, 312, 314, 316, 316L 316H, 316Ti, 317L, 321, 347, 347H,904L

Standards :

A263, A264, SA-263, SA-264

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter:

4000mm

Weight :

30 tons per piece No minimum quantity Standards

Standards :

ASME, ASTM, API, DIN, EN, SA 264

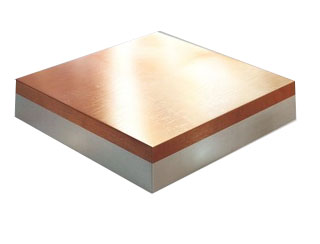

Carbon Steel & Alloy Steel Cladded Plates

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards

Duplex and Super Duplex Steel Cladded Plates

Grades :

S31803 / S32205 (2205) / S32750 (2507) / S32760

Standards :

A263, A264, SA-263, SA-264

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards

High Nickel Alloys Cladded Plates

Grades :

Nickel Alloy 200, 201 / Monel 400, K500 / Inconel 600, 601, 625, 718 / Incoloy 800/800H/800HT, 825, 925 / Hastelloy C22, C-2000 C276, B2, B3

Standards :

ASTM A265 / ASME SA-265

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards

Alloy A286 Cladded Plates

Grade

Alloy A286 UNS S66286

Standards :

A263, A264, SA-263, SA-264

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards

SMO 254 Cladded Plates

Grade

SMO 254 | UNS S31254

Standards :

A263, A264, SA-263, SA-264

Base Thickness :

min 6mm – max no limit

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards

Alloy 20 Cladded Plates

Grade

Alloy 20 UNS N08024

Base Thickness :

min 6mm – max no limit

Standards :

A263, A264, SA-263, SA-264

Clad thickness :

min 2mm – max 15mm

Width :

3800mm Length: 6500mm

Diameter :

4000mm

Weight :

30 tons per piece No minimum quantity Standards
