SMO 254
Alloy Steel Age 254 SMO is a super-alloy austenitic stainless steel developed for use in seawater and other aggressive environments like chloride bearing media. The UNS S31254 steel is identified by its special characteristics- Excellent resistance to pitting and crevice corrosion, PRE = ≥42.5, impact toughness, High resistance to general corrosion, High resistance to chloride stress corrosion cracking, Higher strength than conventional austenitic stainless steels and excellent weldability. For certain applications, grade 254 SMO™ has been reported to be a cost-effective substitute for high nickel and titanium alloys.
Forging, upsetting and other operations relating to 254-SMO material can be performed at 982°C - 1149°C (1800°F - 2100°F). We always maintain the temperature to not exceed this range as it would result in scaling and reduction in the workability of the material. To re-attain maximum corrosion resistant properties, we do not perform post-process annealing.
SMO 254 Availability Alloy Steel Age supplies SMO 254 in the form of Angle, Sheets, Plates, Flanges, Flat Bars, Pipe Fittings, Pipes, Chnnels and flanges.
Specification
SMO 254 Angles
Grade
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M EN, BS, GB, DIN, JIS, etc
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
SMO 254 Sheets
Grade
SMO 254 | UNS S31254
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
SMO Sheet :
thickness range from .008" to .0125"
Size :
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet
SMO 254 Plates
Grade
SMO 254 | UNS S31254
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
SMO Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate
SMO 254 Flanges
Grades :
SMO 254 | UNS S31254
Standard :
ASTM A182 / ASME SA182
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Type :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Flat flange, Industrial flanges, Plate flange, ASME B16.5 flanges.

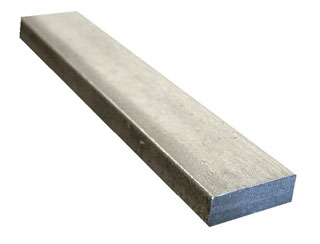

SMO 254 Flat Bars
Grades :
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M EN, BS, GB, DIN, JIS, etc
Size Range :
3.17 mm to 350 mm diameter
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
2mm~100mm
Types
SMO 254 Flat Bars, Alloy 254 Flat Bars
SMO 254 Pipe Fittings
Grade
SMO 254 | UNS S31254
Standard :
ASTM A403 / ASME SA403
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
3/4" - 12"
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
SMO 254 Pipes
Grade
SMO 254 | UNS S31254
Standard :
ASTM A312, B312 / ASME SA312, SB312
Dimensions :
ASTM, ASME and API
Seamless Pipe Size :
1 / 8" NB - 24" NB
ERW Pipe Size :
1 / 8" NB - 36" NB
EFW Pipe Size :
6" NB - 100" NB
Length :
Single Random, Double Random & Required Length
Outer Diameter:
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness :
0.3mm – 50 mm
Schedule :
SCH254, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH1254, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded
SMO 254 Channels
Grades :
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M EN, BS, GB, DIN, JIS, etc
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
SMO 254 Round Bars
Grade
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M
Size Range :
1/2" to 100"
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Length
100 mm to 6000 mm
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
SMO 254 T Beams
Grades :
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M EN, BS, GB, DIN, JIS, etc
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
