Angles

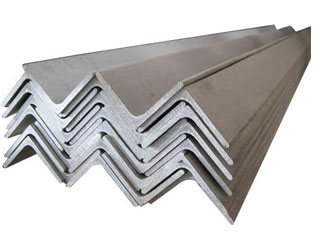

Structural Angles have an L-shaped cross section that is used in many structural steel applications. Standard Lengths are 20′and 40. Alloy Steel Age offers many different sizes, lengths and specifications for Structural Angles

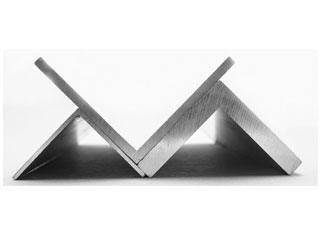

Alloy Steel Age Products supplies stainless even leg angles in 304/304L and 316/316L. Larger even leg stainless angles can be manufactured utilizing laser fusion technology. Laser fussed technology also enables engineers and metal buyers to mix thickness or even material grades. Laser fused even leg angles can also be supplied in Duplex 2205 and lean Duplex 2201
All even leg angles can be cut to size. Even leg stainless angles can be supplied with a polished finish. See below for information specific to angles. Also, see our structural product page for structural overview info, including manufacturing techniques.
Specification
Stainless Steel Angles
Grades :
304, 304L, 304H, 308, 309, 309S, 310S, 310H, 312, 314, 316, 316L 316H, 316Ti, 317L, 321, 347, 347H,904L
Standard :
ASTM A276/ASME SA276 EN, BS, GB, DIN, JIS, etc
Size Range :
Width: (Coil) 900 - 3000 mm /(Strip) Min-15mm
Length(mm)
Max 6000
Thickness
3-10
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Carbon Steel Angles
Grades :
AISI 1018, AISI 1045, E-200, EN-19 (V 320), EN-1A, EN-24 (V 130), EN-31 R-100, EN-351, EN-353, EN-36C, EN-42, EN-44, EN-45, EN-8, EN-9
Standard :
A105, A350LF2, EN, BS, GB, DIN, JIS, etc
Length(mm) :
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Size Range
3.0mm – 120mm
Width
5mm to 9mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Alloy Steel Angles
Grades :
F1, F2, F5, F9, F11, F22, F91, LF2, LF3
Standard :
ASTM A350 / ASME SA350 EN, BS, GB, DIN, JIS, etc
Size Range :
25mm x 25mm (1” equal angle) to 100mm x 100mm (4” equal angle) in thickness range of 2mm to 12mm
Length(mm)
Upto 6 Meters
Thickness
3mm to 20 mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Duplex and Super Duplex Steel Angles
Grades :
S31803 / S32205 (2205) / S32750 (2507)/ S32760
Standard :
ASTM A276/ASME SA276 EN, BS, GB, DIN, JIS, etc
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
High Nickel Alloys Angles
Grades :
Nickel Alloy 200, 201 / Monel 400, K500 / Inconel 600, 601, 625, 718 / Incoloy 800/800H/800HT, 825, 925 / Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B160 / ASME B160, ASTM B164 / ASME SB164, ASTM B166/ ASME SA166, ASTM B408 / ASME SB408, ASTM B574 / ASME SB574
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Alloy A286 Angles
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638, EN, BS, GB, DIN, JIS, etc
Size Range :
3mm*20mm*20mm~12mm*100mm*100mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
SMO 254 Angles
Grade
SMO 254 | UNS S31254
Standard :
ASTM A 276/A 276M EN, BS, GB, DIN, JIS, etc
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Alloy 20 Angles
Grade
Alloy 20 UNS N08024
Standard :
STM B473 / ASME B473 EN, BS, GB, DIN, JIS, etc
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
