Hastelloy
Alloy Steel Age supplies Hastelloy C276, C22, X, B3 and B2. Most of these alloys are available in the form of plate, sheet, bar, pipe, tubing, pipe fittings, flanges and welding material. Request a Quote today on any of these alloys.
The registered trademark name, Hastelloy, is applied as the prefix name to more than twenty different highly corrosion resistant metal alloys produced by Haynes International, Inc. These superalloys, or high performance alloys, developed by Haynes International, are nickel-based steel alloys that exhibit traits that include high resistance to uniform attack, localized corrosion/oxidation resistance, stress corrosion cracking resistance and ease of welding and fabrication.
Alloys of identical chemical and mechanical properties are available from other manufacturers and offer excellent alternatives to the various Hastelloy® brand alloys.
The corrosion-resistant superalloys are widely used by the chemical processing, aerospace, and industrial gas turbine and marine industries. Additionally, due to the their reliable performance, areas of energy, health and environmental, oil and gas, pharmaceutical and flue gas desulfurization industries are increasingly using them.
Specification

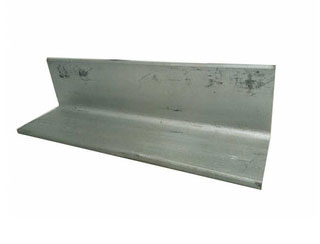

Hastelloy Angles
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B574 / ASME SB574
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

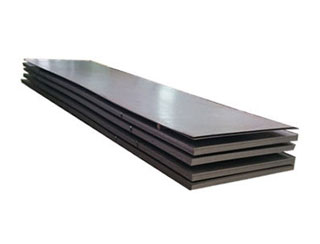

Hastelloy Sheets
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B575 / ASME SB575
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet

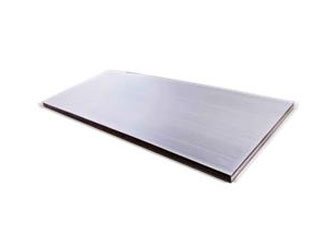

Hastelloy Plates
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B575 / ASME SB575
Dimensions :
ASTM, ASME, and API
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate

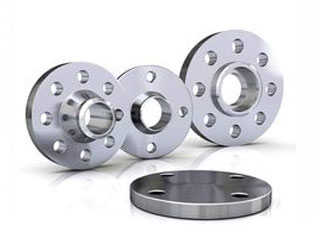

Hastelloy Flanges
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B564 / ASME SB564
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

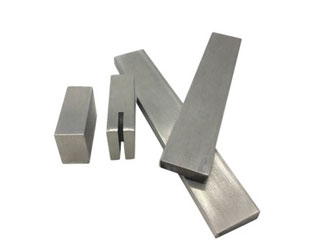

Hastelloy Flat Bars
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B574 / ASME SB574
Size Range :
3.17 mm to 350 mm diameter
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
2mm~100mm
Types
Hastlloy Flat Bars, Hastelloy Alloy Flat Bars

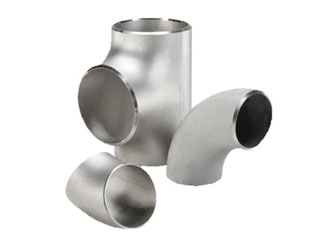

Hastelloy Pipe Fittings
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B366 / ASME SB366
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

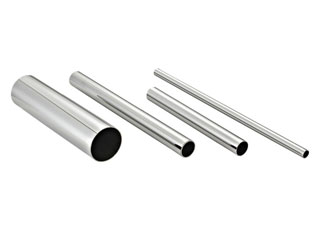

Hastelloy Pipes
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B622, B619 / ASME SB622, SB619
Pipe Size :
Range 15"NB – 150"NB
Outside Diameter :
6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded

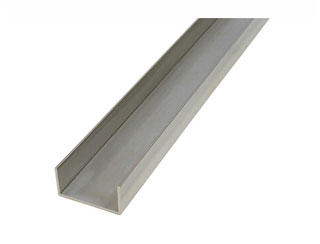

Hastelloy Channels
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B574 / ASME SB574
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Hastelloy Round Bars
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B574 / ASME SB574
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Hastelloy T Beams
Grades :
Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B574 / ASME SB574
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
