Monel
The registered trademark name, Monel, is applied as the prefix name to several corrosion resistant alloys produced by Alloy Steel Age. These alloys are nickel-based and exhibit traits that include high resistance to atmospheric corrosion, salt water, and various acid and alkaline solutions.
Alloys of identical chemical and mechanical properties are available from other manufacturers and offer excellent alternatives to the various Monel® brand alloys. The corrosion-resistant alloy is widely used in the marine, oil and chemical processing industries.
Monel Availability Alloy Steel Age supplies Monel 400, K-500 & R-405. Most of these grades are available in the form of plate, sheet, pipe, tubing, fittings, bar, wire and rod.
Specification
Monel Angles
Grades :
Monel 400, K500, R405
Standard :
ASTM B164 / ASME SB164
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Monel Sheets
Grades :
Monel 400, K500, R405
Standard :
ASTM B127 / ASME SB127, AMS 4544
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet
Monel Plates
Grades :
Monel 400, K500, R405
Standard :
ASTM B127 / ASME SB127, AMS 4544
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate

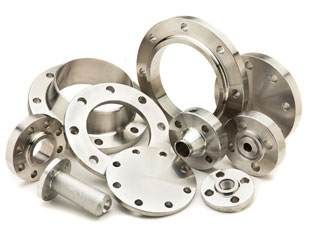

Monel Flanges
Grades :
Monel 400, K500, R405
Standard :
ASTM B564 / ASME SB564
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange
Monel Flat Bars
Grades :
Monel 400, K500, R405
Standard :
ASTM B164 / ASME SB164
Size Range :
3.17 mm to 350 mm diameter
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
2mm~100mm
Types
Monel Flat Bars, Monel Alloy Flat Bars
Monel Pipe Fittings
Grades :
Monel 400, K500, R405
Standard :
ASTM B366 / ASME SB366
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Monel Pipes
Grades :
Monel 400, K500, R405
Standard :
ASTM B165, B725 / ASME SB165, SB725
Pipe Size :
Range 15"NB – 150"NB
Outside Diameter :
6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded
Monel Channels
Grades :
Monel 400, K500, R405
Standard :
ASTM B164 / ASME SB164
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Monel Round Bars
Grades :
Monel 400, K500, R405
Standard :
ASTM B164 / ASME SB164
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Monel T Beams
Grades :
Monel 400, K500, R405
Standard :
ASTM B164 / ASME SB164
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
