Incoloy
The registered trademark name, Incoloy, is applied as the prefix name to several highly corrosion resistant high temperature strength metal alloys produced by Alloy Steel Age. These Incoloy alloys or superalloys are nickel-based alloys that exhibit traits that include good corrosion resistance in aqueous environments, excellent strength and oxidation resistance in high-temperature settings, good creep-rupture strength, and ease of fabrication.
Alloys of identical chemical and mechanical properties are available from other manufacturers and offer excellent alternatives to the various Incoloy brand alloys.
The corrosion-resistant superalloys are widely used in extreme environments where tremendous heat and corrosion resistance is paramount to the integrity of the end product. Chemical and petrochemical processing, power plants, and oil and gas industries widely use these superalloys.
Incoloy Availability Alloy Steel Age supplies Incoloy 800, 800H/HT and 825 in the form of Angle, Sheets, Plates, Flanges, Flat Bars, Pipe Fittings, Pipes, Chnnels and flanges.
Specification

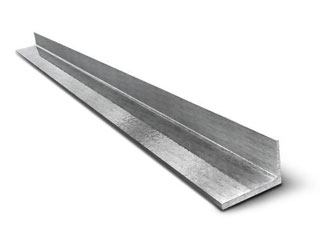

Incoloy Angles
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B408 / ASME SB408
Size Range :
5mm to 9mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

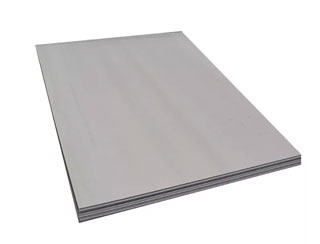

Incoloy Sheets
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B409 / ASME SB409, AMS 5877, ASTM B424 / ASME SB424
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet

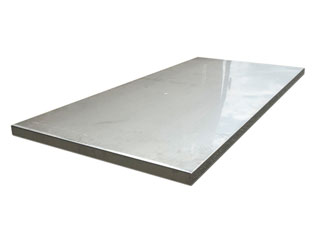

Incoloy Plates
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B409 / ASME SB409, AMS 5877, ASTM B424 / ASME SB424
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate

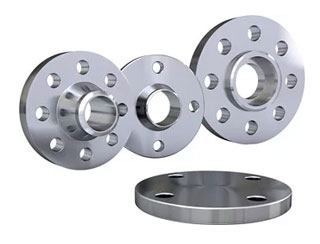

Incoloy Flanges
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B564 / ASME SB564
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

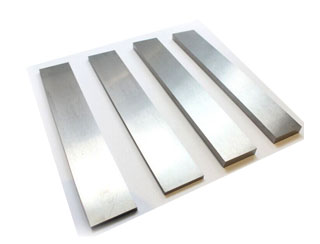

Incoloy Flat Bars
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B408 / ASME SB408
Size Range :
3.17 mm to 350 mm diameter
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
2mm~100mm
Types
Monel Flat Bars, Monel Alloy Flat Bars
Incoloy Pipe Fittings
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B366 / ASME SB366
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

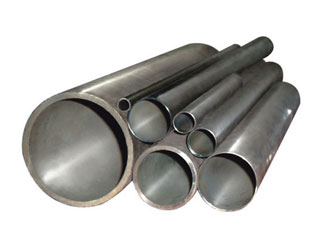

Incoloy Pipes
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B705 / SB705, ASTM B407/ ASME SB407, STM B514 / SB514, ASTM B423, ASME SB423
Pipe Size :
Range 15"NB – 150"NB
Outside Diameter :
6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW
End :
Plain End, Beveled End, Treaded

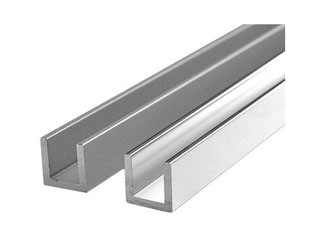

Incoloy Channels
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B408 / ASME SB408
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Incoloy Round Bars
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B408 / ASME SB408
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Incoloy T Beams
Grades :
Incoloy 800/800H/800HT, 825, 925
Standard :
ASTM B408 / ASME SB408
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
