Alloy A286
Stainless steel A286 is a heat and corrosion resistant austenitic iron-base material that can be age hardened to a high strength level. It is designed for use at temperatures up to 704°C (1300°F) where good corrosion resistance, excellent creep strength and high tensile strength are required. The alloy can also be used for low temperature applications that require a ductile, non-magnetic high strength material at temperatures below room temperature.
Generally, high temperature alloyshigh-temperature alloys are difficult to machine than stainless steels. However, stainless steel A286, an iron-base alloy group iron base alloy is easier to machine than the nickel-based precipitation-hardening gradesthe nickel-based precipitation-hardening grades. Carbon insert tools are commonly used for machining this alloy. Although A286 alloy is harder than other stainless steels, it can be satisfactorily cold drawn and formed. It can be work-hardened rapidly. Forging of this alloy can be performed at temperatures ranging from 1038 to 1121°C (1900 to 2050°F temperature).
A286 alloy can also be produced by argon oxygen decarburization or vacuum induction melting. Vacuum arc or electroslag remelting techniques may be used to refine the alloy.
Specification

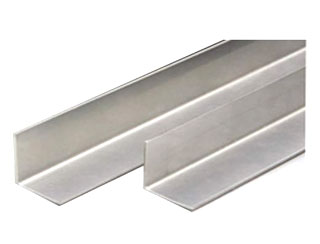

Alloy A286 Angles
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638, EN, BS, GB, DIN, JIS, etc
Size Range :
3mm*20mm*20mm~12mm*100mm*100mm
Length(mm)
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Thickness
3.0mm – 120mm
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

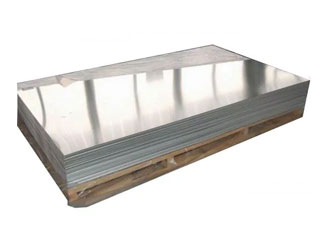

Alloy A286 Sheets
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5858, SAE AMS 5525
Standard :
ASTM A286, ASME SA286
Size Range :
0.016" - 0.130"
Thickness Sheets :
range from .008" to .0125"
Thickness Plates:
ranges from .0125" to 5.00"
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Plain Sheet, Shim Sheet, Perforated Sheet
Alloy A286 Plates
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5858, SAE AMS 5525
Standard :
ASTM A286, ASME SA286
Size Range :
0.016" - 0.130"
Thickness Sheets :
range from .008" to .0125"
Thickness Plates:
ranges from .0125" to 5.00"
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate

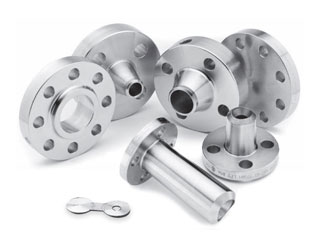

Alloy A286 Flanges
Grades :
Alloy A286 UNS S66286, AMS 5525, AMS 5732, AMS 5737, AMS 5804, EN 1.4980, GE B50T1181, GE B50T12, GE B50T81, Werkstoff 1.4980
Standard :
ASTM A182 / ASME SA182
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

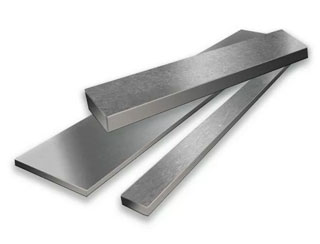

Alloy A286 Flat Bars
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638
Size Range :
5 mm To 500 mm
Length(mm)
100 mm To 3000 mm Long & Above
Thickness
0.1 mm to 100 mm
Types
Alloy A286 Flat Bars

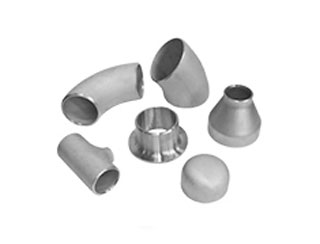

Alloy A286 Pipe Fittings
Grade
Alloy A286 UNS S66286
Standard :
ASTM A403 / ASME SA403
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type :
Seamless / Welded / Fabricated
Schedule :
Sch 5 TO Sch XXS.
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

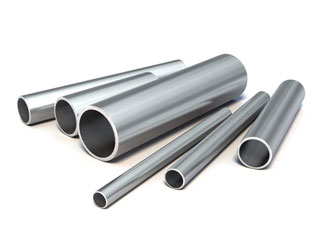

Alloy A286 Pipes
Grade
Alloy A286 UNS S66286
Standard :
ASTM A286, ASME SA286
A286 AISI 660 Seamless Pipe size :
4 to 219mm W. T.: 0.5 to 20mm
A286 Seamless Pipe Out diameter :
5.0mm ~ 203.2mm
A286 Welded Pipe Out diameter :
5.0mm ~ 1219.2mm
Length :
Upto 6 Meters, Single Random, Double Random & Cut Length.
A286 AISI 660 EFW Pipe size :
5.0 mm – 1219.2 mm
Stainless Steel A286 Pipe Schedule :
SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Stainless Steel A286 Pipe Form :
Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc.
Alloy A286 Channels
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channel
Alloy A286 Round Bars
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Alloy A286 T Beams
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5731, AMS 5732, AMS 5734, AMS 5737, AMS 5804, AMS 5858
Standard :
ASTM A453, ASTM A638
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
T Beams, Hot Rolled T Beams
