Stainless Steel 904L
Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.
Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel. Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel
Applications:
Due to its high levels of molybdenum and nickel, Stainless Steel 904L is frequently used in high chloride environments. Examples of applications that call for the used of Stainless Steel 904L include:
♦ Wiring in electrostatic precipitators
♦ Oil refinery components
♦ Seawater cooling devices
♦ Gas scrubbing plants
♦ Pulp and paper processing industries
♦ Acetic, phosphoric and sulphuric acid processing plants
Standards:
ASTM/ASME : UNS N08904
EN : X1NiCrMoCu25-20-5
DIN : 1.4539
Stainless Steel 904L Availability Alloy Steel Age supplies Stainless Steel 904L in the form of Angle, Sheets, Plates, Flanges, Flat Bars, Pipe Fittings, Pipes, Chnnels and flanges.
Specification
Stainless Steel 904L Angles
Grades :
Stainless Steel 904L
Standard :
ASTM A276 / ASME SA276
Size Range :
Width: (Coil) 900 - 3000 mm /(Strip) Min-15mm
Length(mm)
Max 6000
Thickness
3-10
Width
25-100
Types
Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Stainless Steel 904L Sheets
Grades :
Stainless Steel 904L
Standard :
: ASTM A240 / ASME SA240
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Plain Sheet, Shim Sheet, Perforated Sheet
Stainless Steel 904L Plates
Grades :
Stainless Steel 904L
Standard :
: ASTM A240 / ASME SA240
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Chequered Plate

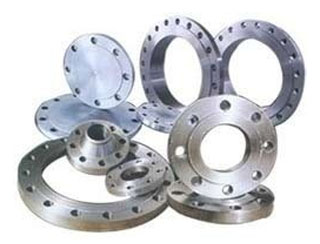

Stainless Steel 904L Flanges
Grades :
Stainless Steel 904L
Standard :
ASTM B649 / ASME SB649
Dimensions :
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :
1/2" (15 NB) to 48" (1200NB)
Class/Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form :
Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange
Stainless Steel 904L Flat Bars
Grades :
Stainless Steel 904L
Standard :
ASTM A276 / ASME SA276
Size Range :
Width: 3.17mm to 350mm dia
Length(mm)
2 meters - 7 meters ( 8 feet to 24 feet)
Thickness
2mm~100mm
Width
25-100
Types
Stainless Steel 904L Flat Bars, SS 904L Flat Bars

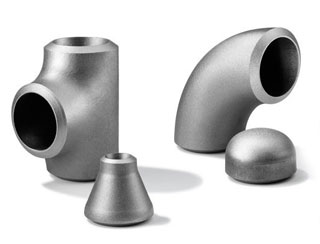

Stainless Steel 904L Pipe Fittings
Grades :
Stainless Steel 904L
Standard :
ASTM A403 / ASME SA403
Dimensions :
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type :
Seamless / Welded / Fabricated
Bending Radius :
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Schedule :
Sch 5 TO Sch XXS.
Thickness :
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Stainless Steel 904L Pipes
Grades :
Stainless Steel 904L
Standard :
ASTM B677 B673 / ASME SB677 SB673
Seamless Size :
1/2″ NB – 16″ NB
ERW Size :
1/2″ NB – 24″ NB
EFW Size :
6″ NB – 100″ NB
Outside Diameter :
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available
Length :
Single Random, Double Random & Required Length
Thickness :
0.3mm – 50 mm
Schedule :
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type :
Seamless, Welded, ERW, EFW
Form :
Round Pipes, Square Pipes, Rectangular Pipe
End :
Plain End, Beveled End, Treaded
Stainless Steel 904L Channels
Grades :
Stainless Steel 904L
Standard :
ASTM A276, A473, A479, A484, A582
Size Range :
40mm*20mm~300mm*300mm
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous Channels, Hot Rolled Channels
Stainless Steel 904L Round Bars
Grades :
Stainless Steel 904L
Standard :
ASTM A276, A473, A479, A484, A582
Size Range :
(Ro)Dia 4 - 600mm, (Hex) 6-75mm, (SQ) 4 -100mm
Thickness
5 mm To 500 mm thick in 100 mm TO 6000 mm.
Types
Round, Square, Recatangle, Hexagonal, Round Threaded
Stainless Steel 904L T Beams
Grades :
Stainless Steel 904L
Standard :
ASTM A276, A473, A479, A484, A582
Size Range :
3″ thru 12.31″
Thickness
3.0mm – 120mm
Length
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types
Structural Steel U, C, Miscellaneous T Beams, Hot Rolled T Beams
