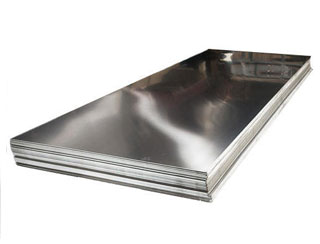

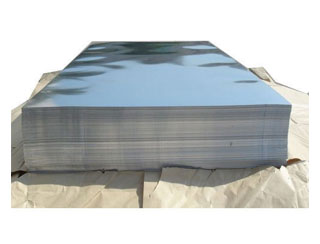

Plates
Plates are available in stainless steel, nickel alloy, carbon steel, alloy steel and duplex steel. We stock sheets and plates of standard quality, high strength, corrosion resistance and finished product of no defect. Plates and sheets are highly customized and available in different range as per the requirement stated by our clients.
Plates offered by us are of superior quality, high durability and ductility. Plates and sheets are extensively used in the industrial sector for manufacturing machines and so on.
Plate materials are procured according to the materials specification and grade shown on the vessel drawing or proposed by the fabricator Materials are selected to obtain the properties required for the service conditions and process environment:
Strength
Hardness
Toughness
Corrosion resistance
Designated by reference to an “SA Specification” in the ASME Code
Specification
Stainless Steel Plates
Grades :
304, 304L, 304H, 308, 309, 309S, 310S, 310H, 312, 314, 316, 316L 316H, 316Ti, 317L, 321, 347, 347H,904L
Standard :
ASTM A240 / ASME SA240
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Chequered Plate
Carbon Steel Plates
ASTM / Grades :
ASTM / ASME A516, AISI, ASTM A283/A283M, A572/A572M, A36/A36M, A573/A573M, A529/A529M, A633/A633M, A678/A678M, A588/A588M, A242/A242M, GB/T700-2006, GB/T3274-2007, GB912/2008, JISG3101-2004, EN10025-2-2004, JISG3106-2004, JISG3114-2004, GB/T4171-2008, etc
Dimensions :
ASTM, ASME, and API
Width :
10-3500mm
Thickness :
0.3-500mm
Length :
3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Length :
2m, 2.44m, 3m, 6m, 8m, 12m, or rolled, etc
Surface Finish :
PE coated, anti rust oiled, checkered, Galvanized, anti rust varnished, Black painted, color coated etc
Application :
Pressure Vessel Plate, Steel Boiler plate
Form :
Chequered Plate
Alloy Steel Plates
Grades :
Gr.5, Gr.9, Gr.11, Gr.12, Gr.22, EN19 / 4140, EN24 / 4340
Standard :
ASTM A387 / ASME SA387
Thickness :
5mm-150mm
Width :
1000mm-4500mm
Length :
3000mm-18000mm
Surface Condition
Normalized Rolling, As Rolled, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Application :
Pressure Vessel Plate, Steel Boiler plate
Form :
Chequered Plate
Duplex and Super Duplex Steel Plates
Grades :
S31803 / S32205 (2205) / S32750 (2507)/ S32760
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness :
4mm-100mm
Length :
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish :
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate
High Nickel Alloys Plates
Grades :
Nickel Alloy 200, 201 / Monel 400, K500 / Inconel 600, 601, 625, 718 / Incoloy 800/800H/800HT, 825, 925 / Hastelloy C22, C-2000 C276, B2, B3
Standard :
ASTM B168 / ASME SB168, AMS 5540, ASTM B443 / ASME SB443, AMS 5599, AMS 5869, ASTM B670 / ASME SB670, AMS 5596, AMS 5597, ASTM B409 / ASME SB409, AMS 5877, ASTM B424 / ASME SB424, ASTM B575 / ASME SB575, ASTM B127 / ASME SB127, AMS 4544
Dimensions :
ASTM, ASME, and API
Nickel Sheet :
thickness range from .008" to .0125"
Nickel Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate
Alloy A286 Plates
Grade
Alloy A286 UNS S66286, AMS 5525, AMS 5858, SAE AMS 5525
Standard :
ASTM A286, ASME SA286
Size Range :
0.016" - 0.130"
Thickness Plates :
range from .008" to .0125"
Thickness Plates:
ranges from .0125" to 5.00"
Tempers :
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate
SMO 254 Plates
Grade
SMO 254 | UNS S31254
Standard :
ASTM A240 / ASME SA240
Dimensions :
ASTM, ASME, and API
SMO Sheet :
thickness range from .008" to .0125"
SMO Plate :
thickness ranges from .0125" to 5.00"
Size :
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Chequered Plate
Alloy 20 Plates
Grade
Alloy 20 UNS N08024
Standard :
ASTM B463 / ASME SB463, AMS 4544
Dimensions :
ASTM, ASME, and API
Alloy 20 Plates
thickness range from .008" to .0125"
Alloy 20 Plates
thickness ranges from .0125" to 5.00"
Size
15NB to 150NB In
Tempers
Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Hardness
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form
Chequered Plate
